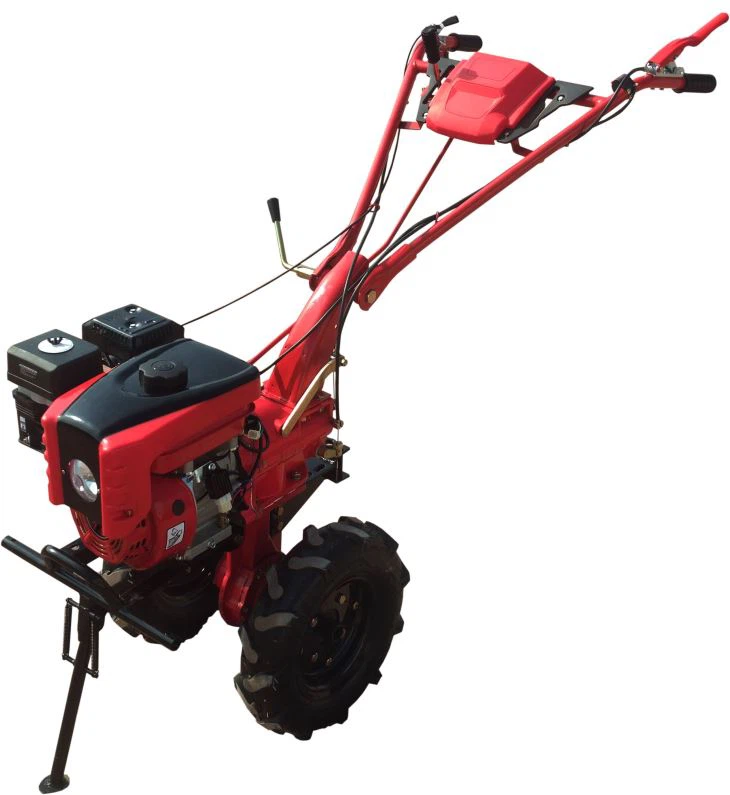

Gasoline Gear Driven Motorblock, Tiller Cultivator With Head Light, Maycay Produce By Chongqing Factory
Gasoline Gear Driven Motorblock, Tiller Cultivator With Head Light, Maycay Produce By Chongqing Factory
Gasoline Gear Driven Motorblock, Tiller Cultivator With Head Light, Maycay Produce By Chongqing Factory
Gasoline Gear Driven Motorblock, Tiller Cultivator With Head Light, Maycay Produce By Chongqing Factory
Gasoline Gear Driven Motorblock, Tiller Cultivator With Head Light, Maycay Produce By Chongqing Factory

Gasoline Tiller Manual Cultivator

170 7HP Gasoline Gear Transmission tiller
Full steel crankshaft and camshaft
1 year of qualiry warranty
gear shifting:2,1,0,-1 (optional:3,2,1,0,-1)

Send Inquiry

Product Introduction

Manual Cultivator Specification

Tiller Model No.

1WG4.0-95FQ-D

ENGINE

SPECIFICATION

Model 170F/P Bore*Stroke 70 * 55 Power Max: 7HP / Rated:5.6HP Type 1 Cylinder , 4 Stoke, Air Cooling Fuel Capacity 3.6 Liter Fuel Type Gasoline Fuel Consumption ≤340 Gram / Kw.Hour Lube Capacity 0.6 Liter Lube Type SAE10W-30 Start System Manual Pull

TILLER

SPECIFICATION

Max. Power 4Kw /3600RPM Lube Capacity Gear Box: 0.95 Liter Lube Type SAE10W-30 Working Width 950 mm Working Depth ≥100 mm Gear Shifting

2 Forwards: Fast and Slow

/ 1 Reverse / Neutral

Transmission Belt and Chain Packing Detail PLY Wood Packing Details Carton with Bracket Packing Size 820*450*750 mm N.W./G.W. 62KG/85KG Standard Configurations 52KG / 75KG

Gasoline Tiller Introduction

Small cultivator refers to a mannequin with a host energy of much less than 4.5kW. Its primary factors are the electricity transmission part, the strolling phase and the working part. Because of its mild weight, small dimension and bendy operation, it can now not solely be used for vegetable greenhouses, low fruit forests, crop rows in the cultivation of weeding, soil fertilization and spraying liquid, however additionally for potatoes, potatoes, ginger, inexperienced onions and different low plants trenching, cropping, planting operations. During the developing season of the crop. It can additionally be used for administration operations such as fertilization and soil cultivation and pesticide spraying.

This gasoline tiller is appropriate for paddy fields, drylands and vegetable greenhouses in plains, mountains and hilly areas, particularly appropriate for mountain terraces, small farmland and deep mud work. We can additionally produce in accordance to your requirements. The cultivator is powered with the aid of a small diesel engine or fuel engine, which has the benefits of mild weight, small dimension and easy structure. With the corresponding equipment, it can now not solely elevate out pumping, electricity era and spraying operations, however additionally drag trailers for short-distance transportation.
