Agricultural Small Mini Plow Self Propelled Lime Fertilizer Broadcaster Farming Track Multifunctional Power Rubber Track Crawler Rotary Cultivator

Agricultural Small Mini Plow Self Propelled Lime Fertilizer Broadcaster Farming Track Multifunctional Power Rubber Track Crawler Rotary Cultivator

Parameter: Gasoline power tiller/farm tiller cultivator 1. It’s a multi-function machine which can be tilling, fertilizing, seeding, weeding, ditching etc by replace different implements. 2. Suitable for mountainous areas and small piece of land. It has reverse gear and instant stop protector,...
Send Inquiry
Product Introduction

We are also a unified big family, everyone stick to the company value 'unification, dedication, tolerance' for brand tiller, wheel cultivator, spring diesel cultivator. We take 'customer-friendly, quality-oriented, integrative, innovative' as objectives. Our company can quickly and effectively respond to market needs and changes in product development, manufacturing, marketing, and customer service. We sincerely welcome businessmen at home and abroad to cooperate with us. Our company is committed to be the most competitive company in terms of quality and price, so as to serve the majority of dealers and customers. We keep adding new products, and ensure the company's economic benefits long-term development.

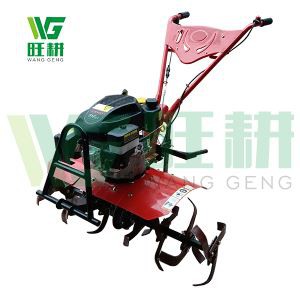

Small Rotavator Specifications


Tiller Model No.

1WG4.0-75FQ-D

Engine Specification

Model

170F/P

Bore*Stroke

70 * 55

Power

Max: 7HP / Rated:5.6HP

Type

1 Cylinder , 4 Stoke , Air Cooling

Fuel Capacity

3.6 Liter

Fuel Type

Gasoline

Fuel Consumption

≤340 Gram / Kw.Hour

Lube Capacity

0.6 Liter

Lube Type

SAE10W-30

Starting System

Manual Pull

Tiller Specification

Max. Power

4Kw /3600RPM

Lube Capacity

Gear Box: 0.95 Liter

Lube Type

SAE10W-30

Working Width

750 mm

Working Depth

≥100 mm

Gear Shifting

2 forward: Fast and Slow / 1 Reverse / Neutral

Transmission

Belt and Chain

Packing Details

Carton with Bracket

Packing Size

850*450*750 mm

N.W. / G.W.

52KG / 75KG

Standard Configurations

400-8 Travel Tires x 2pcs,

Φ 23 Dry Blades (24pcs of blades in total-3+1 type),

Handle Vertical Adjustment, Front Wheel.

In recent years, with the increasingly fierce competition in the gasoline tiller market, a variety of different models and uneven quality models have appeared on the market, which has brought greater difficulties to the user's purchase and application. After scientific experiments and market testing, this small rotovator is most suitable for the elderly and women to use, small and flexible, effectively reducing work

mini tiller application

Gasoline Tiller Cautions


The new gasoline tiller has made good improvements in the braking system, and the clutch machine will stop working when the hand releases, which can greatly reduce the accident rate. The lack of safety awareness of many farmers is also an important reason for the frequent accidents. The lack of attention to safety and the improper use of the operation method of the machine may cause accidents. Therefore, before using the small rotovator, farmers should first be familiar with the machine, including performance and use of the way, farmers should organize unified training and learning, so that users understand the principle of machine operation, and if the operation is improper or do not pay attention to safety may cause what consequences, through unified training to let farmers better enhance their own safety awareness, only their own awareness is improved, in order to use the machine to be careful, standardized operation, so as to effectively reduce the occurrence of accidents.

Although the small rotovator is smaller and easier to use, but it also has certain requirements in the process of use, so the age of the user should also make requirements, after a certain age is not recommended to use the machine, if the user is still not in accordance with the requirements of the use of the machine, to do at any time supervision, timely correction, after the discovery can be criticized education or make certain punitive measures.

With the development of society, farming machine technology is also constantly improving, it brings certain convenience to farmers at the same time also added some safety hazards, and how to enhance the farmers' own safety awareness to reduce the occurrence of accidents may take a certain amount of time, but I believe that with the implementation of policies and the formulation of various agricultural standards, there will be more and more farmers to benefit from it, and it is urgent to enhance farmers' safety awareness.

mini tiller application

Since the establishment of our company, the primary goal has been to maintain the superior quality, excellent durability and high cost performance of our Agricultural Small Mini Plow Self Propelled Lime Fertilizer Broadcaster Farming Track Multifunctional Power Rubber Track Crawler Rotary Cultivator. In recent years, we have continued to develop in the fierce market competition. With the support of our customers, our products are sold all over the world and are deeply trusted by customers. All merchandise are manufactured with advanced equipment and strict QC procedures in purchase to assure high-quality.
