Farm Tractor Cultivator Blade Pto Mini Rotary Tiller (RT135)

Farm Tractor Cultivator Blade Pto Mini Rotary Tiller (RT135)

1.Safety and convenience controlling panel: Left side is clutch saftety switch to aviod emergency by controlling clutch to stop the running tiller,especially useful in cold weather when it is difficulty to restart the flameout engine Right side is handlebar shift lever to shift the lever more...
Send Inquiry
Product Introduction

We rely upon strategic thinking, constant modernisation in all segments, technological advances and of course upon our employees that directly participate in our success for easy operation tiller, Famous Brands Diesel Tiller, manual start power tiller. We deeply feel that product quality plays an important role in improving corporate reputation and expanding market share. We use this as a new driving force for corporate management and make unremitting efforts to ensure that product quality continues to meet customer needs. We pursue a people-oriented, meticulous manufacturing, brainstorm, build brilliant' business philosophy.

Production Specification


Tiller Model No.

1WG4.0-75FQ-D

Engine Specification

Model

170F/P

Bore*Stroke

70 * 55

Power

Max: 7HP / Rated:5.6HP

Type

1 Cylinder , 4 Stoke , Air Cooling

Fuel Capacity

3.6 Liter

Fuel Type

Gasoline

Fuel Consumption

≤340 Gram / Kw.Hour

Lube Capacity

0.6 Liter

Lube Type

SAE10W-30

Starting System

Manual Pull

Tiller Specification

Max. Power

4Kw /3600RPM

Lube Capacity

Gear Box: 0.95 Liter

Lube Type

SAE10W-30

Working Width

750 mm

Working Depth

≥100 mm

Gear Shifting

2 forward: Fast and Slow / 1 Reverse / Neutral

Transmission

Belt and Chain

Packing Details

Carton with Bracket

Packing Size

850*450*750 mm

N.W. / G.W.

52KG / 75KG

Standard Configurations

400-8 Travel Tires x 2pcs,

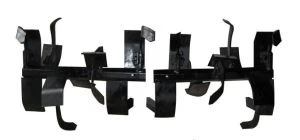

Φ 23 Dry Blades (24pcs of blades in total-3+1 type),

Handle Vertical Adjustment, Front Wheel.

mini cultivator

Cautions


The rotary gasoline tiller working environment is relatively harsh, so the maintenance work is particularly critical. In the use of microtiller, its parts experience vibration and friction for a long time, and are easy to suffer from water, mud, and oil. It is difficult to avoid different degrees of wear and tear, and even loosening and aging, resulting in microtiller technology getting worse and worse, power declining, and increasing oil consumption. In order to avoid the many situations mentioned above, the maintenance system should be strictly enforced. However, in the specific process of microtiller maintenance, the weak awareness of some users of maintenance and a lack of proper maintenance skills intensified the probability of gasoline tiller failure. The maintenance methods for powerful weeder are mainly reflected in the following points:

1) Paying attention to maintenance in the process of daily use. Some users think that maintenance once every few months is sufficient. In fact, the microtiller's wear and tear is formed over time, so the maintenance work should focus on daily maintenance.

2) Using water to cool the air-cooled machine When some users see the high temperature of the air-cooled machine, they worry that it will damage the machine and choose to cool it down by pouring water on it. In fact, this is an extremely wrong way to use water to cool down. It will cause the steel jacket to experience sudden cooling shrinkage, resulting in its broken ring or rupture.

3) Paying attention to lubricant and fuel quality. Lubricant quality will directly affect the microtiller machine's start performance and later application life, and if the fuel quality deviation is high enough, it will lead to microtiller power shortage, thus aggravating the oil pump wear phenomenon and core set wear phenomenon. Therefore, do not be negligent in this regard.

Mini tiller company safety first

Adhering into the basic principle of 'quality, assistance, effectiveness and growth', we have attained trusts and praises from domestic and worldwide client for Farm Tractor Cultivator Blade Pto Mini Rotary Tiller (RT135). Employees are the core of enterprise value creation, so our company respect employees and wish to develop together with them. In order to combine the market demand and development trend, our company leads the new market reform, subverts the traditional mode, improves the company's own grade and expands the business development.
