FPT450 Farming Machinery Mini Rotary Cultivator FP156F Gasoline Engine Tiller
We are working hard to develop various Split-level Paddy Field Wheel, 3-point rotary tiller, Vertical Gasonline Rototiller products with broad market prospects and market competitiveness, and we have achieved fruitful results. We will continue to work hard, with good products and more powerful measures to continue to serve our customers and to achieve win-win situation. We constantly inject new vigor into our products, and have good sales performance and good market prospects. To adapt to the new economic normal, we need to actively change the development mode and realize connotative growth.
Production Introduction

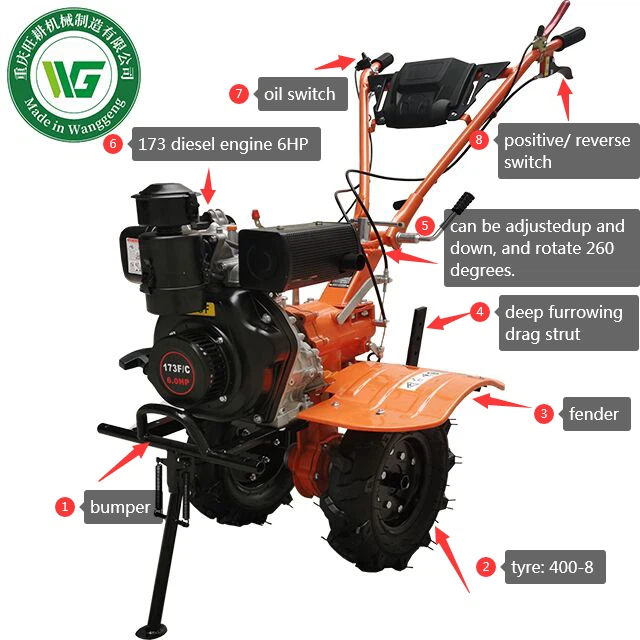

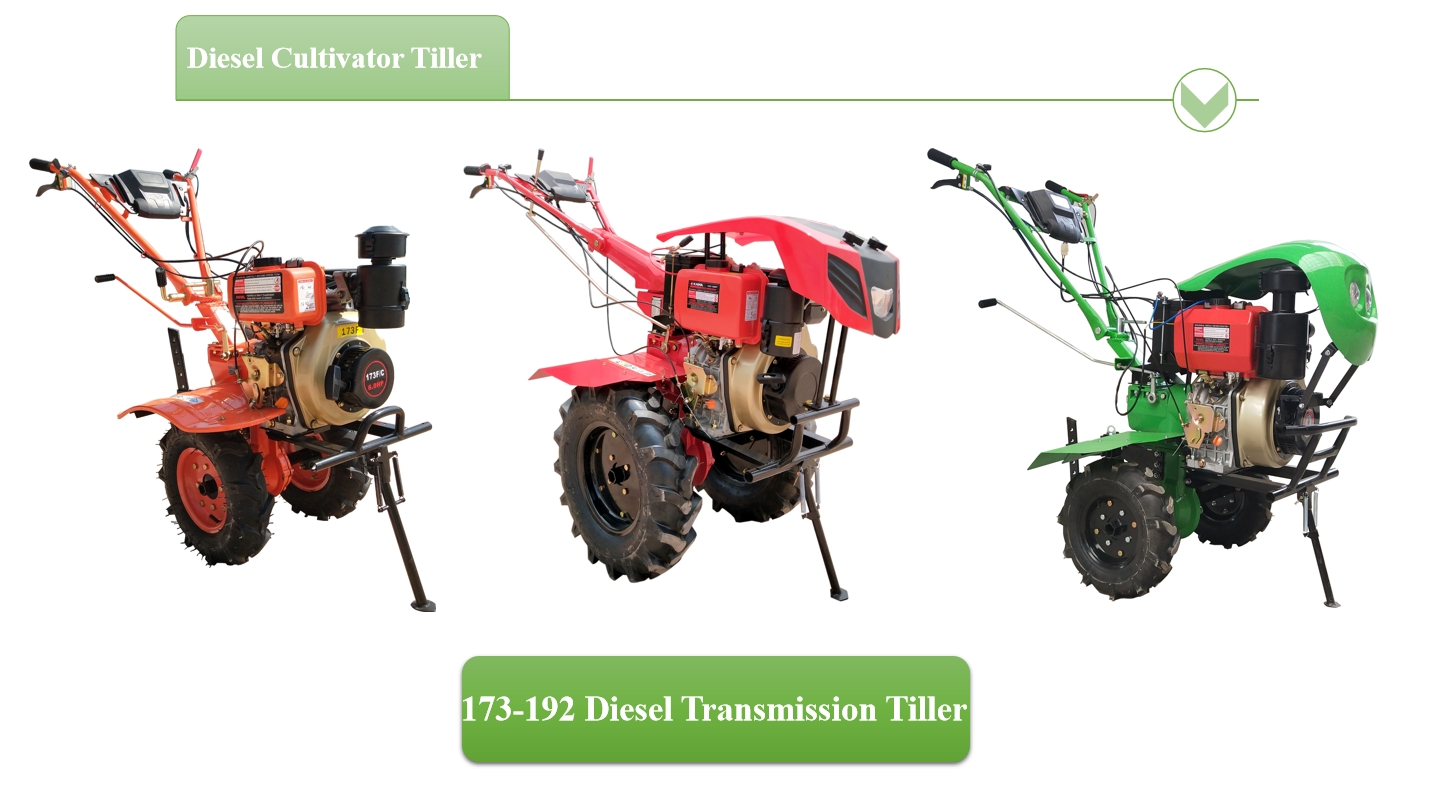

The diesel micro-tillers are equipped with diesel engine power in accordance with domestic and international standards, beautiful and compact fenders and bumpers, risers and handgrips are well received by customers at home and abroad.
In recent years, the promotion of microtillers around the world has grown exponentially, and compare with traditional manual or oxen work, microtillers have obvious advantages.
For example, it is highly adaptable and can be cultivated in flat rivers or hills, large fields or small fields, dry fields or paddy fields.
Good operation quality, microtiller plowing depth and width is incomparable with cattle plowing, after microtiller plowing, the soil is fine, flat, soft, improved soil permeability and air permeability, expanding the scope of crop water absorption and fertilizer, which is conducive to crop growth.
Fast working speed. Save time and human resources, general micro-tillers can plow 0.327-0.6h㎡/day, which is 3-5 times of ox plowing.
Low operating costs, the price of a microtiller and plowing cattle is nearly same, but the microtiller's in addition to tillage diesel consumption, basically no other consumption, while the plowing cattle need to feed, disease prevention and repair special place.


Production Specifications
| Tiller Model No. | 1WG4.05-105FC-Z | |
ENGINE SPECIFICATION | Model | 173F |
| Bore*Stroke | 73mm * 60mm | |
| Power | Max: 5.5HP / Rated:5.0HP | |
| Type | 1 Cylinder , 4 Stoke , Air Cooling | |
| Fuel Capacity | 2.5 Liter | |
| Fuel Type | Diesel | |
| Fuel Consumption | ≤290 Gram / Kw.Hour | |
| Lube Capacity | 0.75 Liter | |
| Lube Type | SAE10W-30 | |
| Start System | Manual Pull | |
| TILLER SPECIFICATION | Max. Power | 4.05Kw /3600RPM |
| Lube Capacity | Gear Box: 0.9 Liter | |
| Lube Type | SAE10W-30 | |
| Working Width | 1050 mm | |
| Working Depth | ≥100 mm | |
| Gear Shifting | 2 Forward: Fast and Slow / 1 Reverse /Neutral | |
| Transmission | Gear | |
| Packing Detail | PLY Wood | |
| Packing Size | 820*450*750 mm | |
| Qty(20"/40"/40HQ) | 105 / 216 / 216 | |
| N.W. / G.W. | 85KG / 95KG |
Tilling otavator Features
Practical and durable;
Easy to operate;
Professional design;
Reasonable price;
100% quality check.

We continue to move forward, hoping to build our enterprise into an internationally competitive and industry-leading group that manufacturing FPT450 Farming Machinery Mini Rotary Cultivator FP156F Gasoline Engine Tiller. Since the establishment of our company, we have always followed the world's advanced production level and continued to innovate. With the support and care of new and old customers, our products are exported to domestic and foreign markets. Our company core value includes that employee is our foundation, customer first, teamwork, results oriented and self-transcendence.
