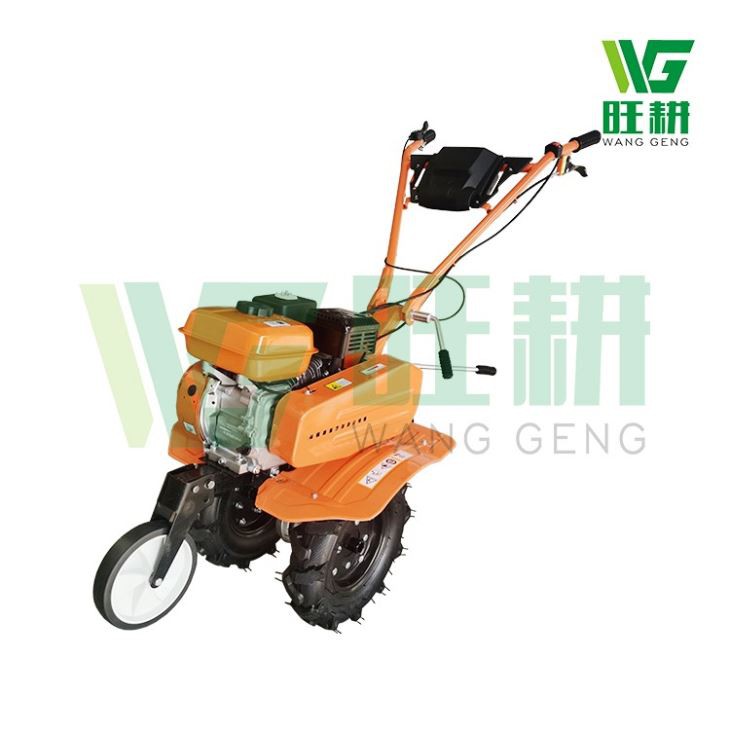

Garden Power Tiller Cultivator with 186f Diesel Engine Gp6.3c-1

Garden Power Tiller Cultivator with 186f Diesel Engine Gp6.3c-1

Specifications: Features: New type 170 gasoline engine 75 belt and chain transmission cultivator Orange color Small in size and easy to operate
Send Inquiry
Product Introduction

Facing new challenges in the future market, all our employees will continue to carry forward a professional, efficient, enthusiastic and thoughtful work style, and provide customers with reliable and high-quality manual start power tiller, rotary tiller, greenhouse cultivator and timely services. We have established our position in the market share through good marketing practices. Our items have exported to many countries all over the world.

Production Specification




Tiller Model No.1WG4.0-75FQ-D
ENGINE  SPECIFICATIONModelWANGGENG 170F
Bore*Stroke70mm * 55mm
PowerMax: 7HP /Rated:5.6HP
Type

1 Cylinder ,

4 Stoke ,

Air Cooling


Fuel Capacity3.6 Liter
Fuel TypeGasoline
Fuel Consumption≤340 Gram/ Kw.Hour
Lube Capacity0.6 Liter
Lube TypeSAE10W-30
Start SystemManual Pull
TILLER  SPECIFICATIONMax. Power4Kw /3600RPM
Lube CapacityGear Box: 0.95 Liter
Lube TypeSAE10W-30
Working Width750 mm
Working Depth≥100 mm
Gear Shifting

2 Forward:

Fast and Slow/

1 Reverse /

Neutral


TransmissionBelt and Chain Aluminum Gearbox
Packing DetailPLY Wood
Packing Size820*450*750 mm
Qty(20"/40"/40HQ)105 / 216 / 216
N.W. / G.W.65KG / 75K
Standard Accessory

A pair of 400-8 Rubber Tyres,

1 pcs of front Tyre,

24 pcs Dry Land Blades (3+1 Blade






Key points for safe operation of agricultural manual cultivator


In recent years, agricultural microtillers have been promoted and used, and have demonstrated good agricultural machinery promotion effectiveness. Agricultural microtillers mainly include double-tracked microtillers, hand-held self-propelled multifunctional microtillers and so on. As a farm machinery operator must do frequent maintenance of agricultural microtiller systems, and constantly improve the overall mechanical structure of agricultural microtillers. The main technical points of operation of agricultural microtiller equipment are as follows.

1. Start-up operation

Small microtillers have good flexibility and care should be taken to protect the microtiller equipment from wear and tear after start-up. Before switching on the tracked automatic tiller system, the technician should carry out a thorough inspection of the screw connections, the oil level and the clutch system. After a thorough start-up inspection, the tiller system should be guaranteed to be mechanically safe. The tiller should be operated in the correct manner to prolong the life of the tiller.

2. Farm cultivation operations

Hand-operated automatic microtillers with automatic adjustment can be used to simplify tillage operations and save on labour costs. When operating the microtiller system, it is essential that the technician follows the correct microtiller operation to avoid damage to the internal structure of the microtiller or downtime due to human error. The mechanical system of the tiller should be thoroughly inspected and replaced at regular intervals to prevent mechanical failure. Once the engine has been fully started, the tiller should be kept in a smooth forward motion to avoid excessive vibration.

3. Operation of the microtiller stop

Farmers should turn off their microtillers immediately after the tillage session to stop wasting too much fuel. When switching off machinery, the handbrake should be applied and it is best to choose a gentle area to park the tiller. Small tillage machines can be parked nearby to ensure that they are switched off after use to avoid wasting energy. If the tiller is running low on fuel, add the right amount of fuel to it.

75


We take 'surpass ourselves and pursue excellence' as our foundation, continue to grow and develop, and create a legend in the Garden Power Tiller Cultivator with 186f Diesel Engine Gp6.3c-1 industry with quality and service. In order to enhance the company's professional production skills, we uphold a rigorous work attitude, and formulate a strict production process. With more than a decade in the field, we are committed to meeting the needs of our customers from different industries in terms of quality, delivery, cost-effectiveness and any other demanding requests.
